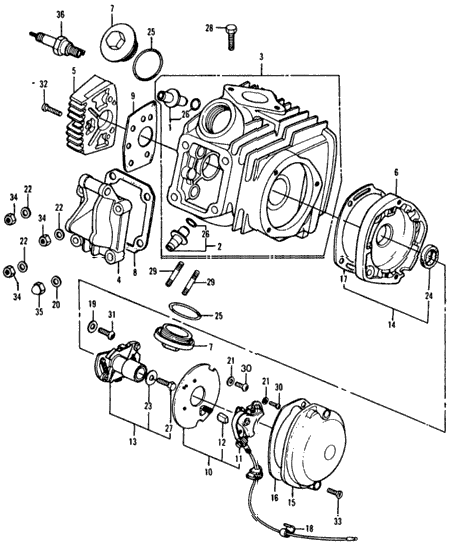

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 12021-VM6-000 | GUIDE, VALVE | ||
| 12021-028-340 | GUIDE, VALVE | ||
| 12021-943-000 | GUIDE, VALVE | ||
| 12201-028-340 | GUIDE, VALVE | ||
| 12023-028-330 | GUIDE, EX. VALVE | ||
| 12023-028-340 | GUIDE, EX. VALVE | ||
| 12023-028-790 | GUIDE, EX. VALVE | ||
| 12023-943-000 | GUIDE, EX. VALVE | ||
| 12232-028-790 | GUIDE, EX. VALVE | ||
| 12200-028-792 | CYLINDER HEAD | ||
| 12301-918-000 | COVER, CYLINDER HEAD | ||
| 12331-028-000 | COVER, VALVE ROCKER ARM SIDE | ||
| 12331-028-010 | COVER, VALVE ROCKER ARM SIDE | ||
| 12331-028-020 | COVER, VALVE ROCKER ARM SIDE | ||
| 12331-128-000 | COVER, VALVE ROCKER ARM SIDE | ||
| 12332-028-030 | BASE, POINTS | ||
| 2 | 12361-028-000 | CAP, TAPPET ADJUSTING HOLE | 2 |
| 1 | 12391-028-000 | GASKET, CYLINDER HEAD COVER | 1 |
| 1 | 12391-028-306 | GASKET, CYLINDER HEAD COVER | 1 |
| 1 | 12391-121-630 | GASKET, CYLINDER HEAD COVER | 1 |
| 1 | 12394-028-010 | GASKET, R. CYLINDER HEAD SIDE COVER | 1 |
| 1 | 12394-028-020 | GASKET, R. CYLINDER HEAD SIDE COVER | 1 |
| 1 | 12394-121-630 | GASKET, R. CYLINDER HEAD SIDE COVER | 1 |
| 1 | 30200-107-014 | POINTS ASSY. (DENSO) | 1 |
| 30200-107-154 | POINTS ASSY. (TOYO) | ||
| 1 | 30202-107-004 | POINTS (DENSO) | 1 |
| 1 | 30202-107-154 | POINTS (TOYO) | 1 |
| 30205-028-004 | FELT, OIL (DENSO) | ||
| 30220-918-004 | ADVANCER ASSY., SPARK (DENSO) | ||
| 30220-918-005 | ADVANCER ASSY., SPARK | ||
| 30360-028-020 | BASE ASSY., POINTS | ||
| 30360-028-030 | BASE ASSY., POINT | ||
| 30370-028-000 | COVER, POINT | ||
| 30370-128-000 | COVER, POINTS | ||
| 1 | 30391-028-000 | GASKET, POINTS COVER | 1 |
| 1 | 30391-028-306 | GASKET, POINTS COVER | 1 |
| 1 | 30391-459-950 | GASKET, POINT COVER | 1 |
| 1 | 30391-459-951 | GASKET, POINTS COVER | 1 |
| 30392-028-020 | GASKET, POINTS BASE | ||
| 30392-028-306 | GASKET, POINTS BASE | ||
| 32901-028-000 | CLIP, POINT LEAD WIRE | ||
| 3 | 90441-028-010 | WASHER, SEALING (6MM) | 3 |
| 1 | 90442-028-000 | WASHER, SEALING (8MM) | 1 |
| 2 | 90482-028-000 | WASHER (5MM) | 2 |
| 3 | 90483-028-000 | WASHER (8MM) | 3 |
| 1 | 90486-028-000 | WASHER, SPARK ADVANCER SETTING | 1 |
| 1 | 91201-028-005 | OIL SEAL (13X22X5) (NOK) | 1 |
| 2 | 91302-200-000 | O-RING (33.5X3) | 2 |
| 2 | 91302-943-003 | O-RING (33.5X3) | 2 |
| 2 | 91304-HB3-003 | O-RING (33.5X3.0) | 2 |
| 2 | 91306-028-000 | O-RING (9.5X1.6) | 2 |
| 1 | 92000-06014 | BOLT, HEX. (6X14) | 1 |
| 1 | 92101-06014-0A | BOLT, HEX. (6X14) | 1 |
| 2 | 92000-06032 | BOLT, HEX. (6X32) | 2 |
| 2 | 92000-06032-0A | BOLT, HEX. (6X32) | 2 |
| 2 | 92101-06032-0A | BOLT, HEX. (6X32) | 2 |
| 2 | 92700-06031 | BOLT, STUD (6X31) | 2 |
| 2 | 92900-06018-0B | BOLT, STUD (6X18) | 2 |
| 2 | 93500-05010-0A | SCREW, PAN (5X10) | 2 |
| 3 | 93500-06012 | SCREW, PAN (6X12) | 3 |
| 3 | 93500-06012-0A | SCREW, PAN (6X12) | 3 |
| 3 | 93500-06012-00 | SCREW, PAN (6X12) | 3 |
| 3 | 93500-06020 | SCREW, PAN (6X20) | 3 |
| 3 | 93500-06020-0A | SCREW, PAN (6X20) | 3 |
| 2 | 93700-05022-0B | SCREW, OVAL (5X22) | 2 |
| 3 | 94001-08000-0S | NUT, HEX. (8MM) | 3 |
| 1 | 94021-08000-0S | NUT, CAP (8MM) | 1 |
| 1 | 98066-58714 | SPARK PLUG (D8HS) (NGK) | 1 |
| 1 | 98066-58717 | SPARK PLUG (D8HA) (NGK) | 1 |
