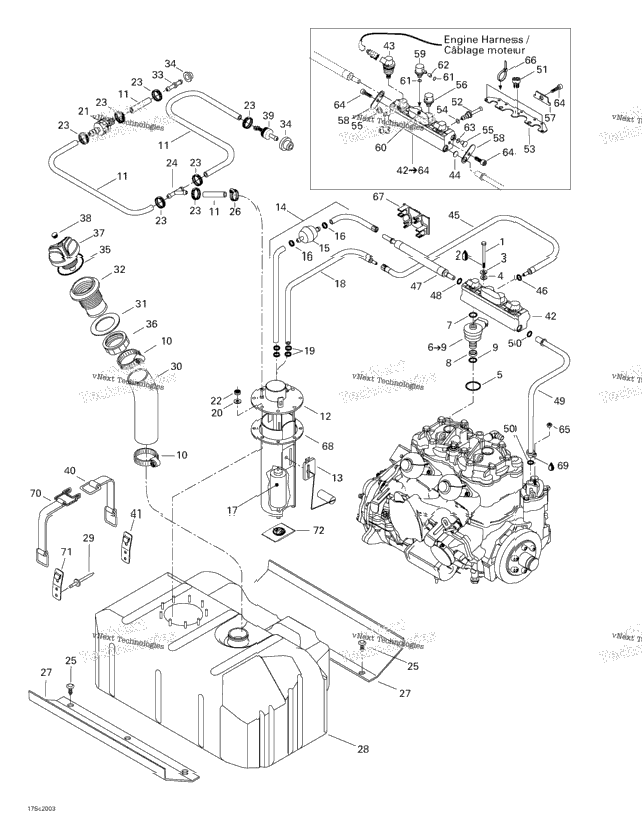

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 207087060 | HEX. SCREW M8 X 70 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 234181601 | Lock Washer 8 mm, Stainless | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 293300054 | O-Ring (5591/5592) | ||
| 2 | 275500451 | Air Injector Includes 6 - 9. | 2 |
| 1 | 293300066 | O-Ring (5591/5592) | 1 |
| 1 | 270600030 | INJECTOR RING | 1 |
| 293300076 | O-Ring | ||
| 2 | 293650023 | Tridon Clamp | 2 |
| 1 | 219704396 | HOSE-6MM. 5000MM LONG | 1 |
| 1 | 275500432 | Fuel Module Ass'y Includes 12 - 18. | 1 |
| 270600012 | Sensor Level | ||
| 275500439 | Fuel Feeding Hose Ass'y | ||
| 275500501 | Fuel Filter | ||
| 1 | 293650030 | Oetiker Clamp | 1 |
| 275500500 | Fuel Pump | ||
| 275500440 | Fuel Return Hose Ass'y | ||
| 4 | 293650030 | Oetiker Clamp | 4 |
| 9 | 234052400 | Flat Washer 5 mm, Stainless | 9 |
| 1 | 275500416 | Check Valve | 1 |
| 9 | 232551200 | Elastic Stop Nut 5 mm | 9 |
| 7 | 293650042 | Oetiker Clamp | 7 |
| 1 | 293710059 | Y-Fitting | 1 |
| 6 | 293730006 | Black, Dart | 6 |
| 1 | 293650038 | Oetiker Clamp | 1 |
| 293830077 | Rubber Pad | ||
| 275500427 | Fuel Tank | ||
| 12 | 293150037 | Avdel Rivet 3/16" | 12 |
| 275500434 | Filler Neck Hose | ||
| 1 | 293250029 | Gasket | 1 |
| 1 | 275500231 | Filler Neck, Fuel | 1 |
| 1 | 293710039 | Straight Fitting | 1 |
| 2 | 293720029 | Grommet | 2 |
| 1 | 293250075 | Gasket | 1 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 1 | 275500430 | Fuel Tank Cap, Black Includes 37 - 38. | 1 |
| 1 | 293000034 | Black, Snap Cap | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 3 | 293850036 | Fuel Tank Strap Includes 40 - 41. | 3 |
| 3 | 293850024 | STRAP CLIP | 3 |
| 275500433 | FUEL DISTRIBUTOR Includes 42 - 64. | ||
| 275500459 | Fuel Injector (Sub-Ass'y) | ||
| 275500457 | Air Filter | ||
| 275500448 | Hose Ass'y Includes 45 - 46. | ||
| 293300070 | O-Ring | ||
| 275500447 | Hose Ass'y Includes 47 - 48. | ||
| 293300069 | O-RING | ||
| 270600022 | Pressure Hose Includes 49 - 50. | ||
| XXXX | Not Available As Spare Part - Socket Screw M5 x 16 | ||
| 275500458 | Air Return Adaptor | ||
| XXXX | Not Available As Spare Part - Retainer Plate | ||
| 275500535 | Cap (5591/5592) | ||
| XXXX | Not Available As Spare Part - Air Regulator | ||
| 1 | 275500456 | RETAINER PLATE | 1 |
| 275500455 | RETAINER PLATE | ||
| XXXX | Not Available As Spare Part - Fuel Regulator | ||
| XXXX | Not Available As Spare Part - Cover | ||
| XXXX | Not Available As Spare Part - O-Ring | ||
| XXXX | Not Available As Spare Part - Spacer | ||
| 2 | 293300073 | O-RING | 2 |
| 3 | 205061260 | Socket Head Screw M6 X 12 | 3 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 291001399 | Clamp Tie | ||
| 1 | 293250088 | Gasket | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 293850037 | FUEL TANK STRAP Includes 70 - 71. | ||
| 1 | 219700368 | Fuel Filter, Bosch | 1 |
