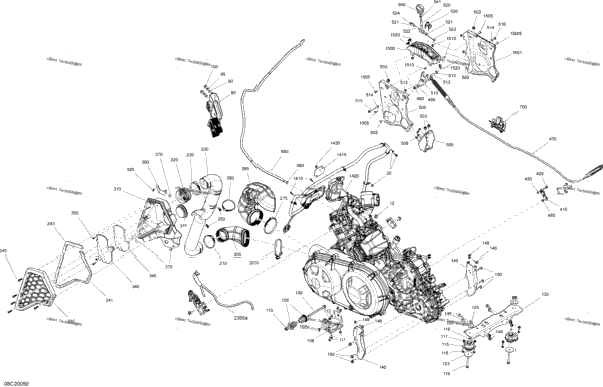

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293650214 | Norma Spring Clamp | 1 |
| 3 | 250000959 | Screw PT Type K-50 X 16 | 3 |
| 1 | 707001166 | Accelerator Pedal | 1 |
| 2 | 707000848 | Bushing | 2 |
| 2 | 250100031 | Push Nut | 2 |
| 2 | 233081416 | Hex. Flange Nut M8 | 2 |
| 2 | 707001169 | Vibration Damper | 2 |
| 1 | 707002592 | Vibration Damper Includes 108 to 108a | 1 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 1 | 230603546 | Hex. Flange Screw M10 X 135 | 1 |
| 1 | 233201416 | Hex. Flange Elastic Nut M10 | 1 |
| 3 | 207661644 | Hex. Flange Screw M6 X 16 | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 2 | 707002590 | Rubber Mount | 2 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 293300215 | O-Ring | 2 |
| 2 | 207686544 | Hex. Flange Screw, M8 X 65 | 2 |
| 2 | 250200158 | Flat Washer M8 | 2 |
| 2 | 250200180 | Flat Washer M8 | 2 |
| 1 | 707002290 | Rear Link Bracket | 1 |
| 1 | 707002449 | Engine Bracket | 1 |
| 1 | 707002450 | Engine Bracket | 1 |
| 6 | 207582046 | Hex Flange Screw M8 X 20 | 6 |
| 6 | 233281416 | Hex. Elastic Flange Nut M8 | 6 |
| 6 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 6 |
| 1 | 706600183 | Front CVT Cooling Duct | 1 |
| 1 | 514052983 | Norma Gear Clamp | 1 |
| 1 | 706600249 | Flexible Adapter | 1 |
| 1 | 293650091 | Norma Clamp | 1 |
| 1 | 706600190 | Soft Fitting | 1 |
| 1 | 706600180 | CVT Filter | 1 |
| 1 | 706600191 | Gasket | 1 |
| 1 | 706600231 | Gasket | 1 |
| 5 | 250000980 | Hex. Screw Pt K60 X 25 | 5 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 706600192 | CVT Cooling Duct Out | 1 |
| 1 | 706600196 | CVT Airbox | 1 |
| 1 | 707002217 | Plug | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 1 | 706600286 | Baffle | 1 |
| 1 | 706600287 | Self Adhesive Protective Foam | 1 |
| 3 | 250000720 | Torx Screw K50 X 16 | 3 |
| 1 | 706600237 | Support | 1 |
| 3 | 293150104 | Pop Rivet 3/16" | 3 |
| 1 | 707000911 | Lever | 1 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 707002000 | Shifting Cable | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | 707002099 | LH Bracket | 1 |
| 1 | 707002100 | RH Bracket | 1 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 4 | 233281416 | Hex. Elastic Flange Nut M8 | 4 |
| 1 | 707002098 | Cable Support | 1 |
| 1 | 707002093 | Lower Lever Arm | 1 |
| 2 | 707000847 | Flanged Bushing | 2 |
| 1 | 707001376 | Bushing | 1 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 707000711 | Upper Lever Arm | 1 |
| 2 | 707000869 | Flanged Bushing | 2 |
| 1 | 707000750 | Lever Arm Spring | 1 |
| 1 | 707000965 | Lever Button | 1 |
| 1 | 232180491 | Hex. Jam Nut M8 | 1 |
| 1 | 219704439 | HOSE 1/4 1000MM LONG | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 1 | 707002116 | Hose Support | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 1 | 710000073 | Insulator Pad | 1 |
| 1 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 | 1 |
| 1 | 250100199 | Insert Half Hex Body M6 x 1.0 | 1 |
| 1 | 707900603 | Lever Indicator | 1 |
| 4 | 250000717 | Torx Head Screw M6 X 16 | 4 |
| 4 | 250100199 | Insert Half Hex Body M6 x 1.0 | 4 |
| 3 | 250000957 | Extruded Panel Nut M6 | 3 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
