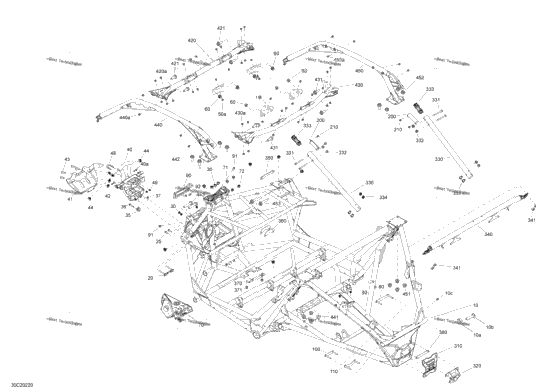

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715006602 | Manta Green, Frame North America | 1 |
| 1 | 715006651 | Manta Green, Frame International | 1 |
| 2 | 233701400 | Hexagonal Nut | 2 |
| 1 | 250000913 | Weld Pin 8mm X 40mm | 1 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 705207424 | Front Plate | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 15 | 250100199 | Insert Half Hex Body M6 x 1.0 | 15 |
| 1 | 705206992 | Bumper Link | 1 |
| 1 | 250000987 | Screw-Hex.Flange DIN.6921 M12X1.75 | 1 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 715006626 | Manta Green, Front Bumper North America | 1 |
| 1 | 715006660 | Manta Green, Front Bumper International | 1 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 715006696 | Front Master Plate North America | ||
| 1 | 715006996 | Front Master Plate International | 1 |
| 6 | 250000957 | Extruded Panel Nut M6 | 6 |
| 6 | 250000722 | Torx Screw M6 X 20 | 6 |
| 2 | 705202455 | Cap | 2 |
| 1 | 705206983 | U-Clamp | 1 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 8 | 390402200 | Pop Rivet 3/16" | 8 |
| 8 | 233221466 | Elastic Flange Nut M12 | 8 |
| 1 | 705206924 | DPS Support | 1 |
| 2 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip | 2 |
| 2 | 233281416 | Hex. Elastic Flange Nut M8 | 2 |
| 1 | 705206852 | Rear Upper Plate | 1 |
| 1 | 705206877 | Stifner Plate | 1 |
| 2 | 207661654 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 1 | 705206853 | Front Plate | 1 |
| 1 | 705206854 | Rear Plate | 1 |
| 2 | 705208286 | Connecting Plate | 2 |
| 4 | 293150102 | Rivet 3/16" | 4 |
| 1 | 705205750 | Rear Plate | 1 |
| 1 | 715004450 | Black, Rear Attachement Hook North America | 1 |
| 1 | 715006661 | Black, Rear Attachement Hook International | 1 |
| 2 | 705208287 | Manta Green, Rear Tube | 2 |
| 4 | 250000901 | Torx Truss M8 X 65 | 4 |
| 4 | 250100025 | Elastic Flange Nut M8 | 4 |
| 2 | 705205634 | Sleeve | 2 |
| 8 | 293450307 | Insert Half Hex Body M8 x 1.25 | 8 |
| 1 | 705205268 | Belt Bar | 1 |
| 4 | 232521416 | Elastic Stop Nut M12 | 4 |
| 1 | 705207425 | Upper Arm Link | 1 |
| 2 | 705205295 | Lower Arm Link | 2 |
| 1 | 706203122 | Support | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 1 | 705206069 | Front Upper Plate | 1 |
| 1 | 705208583 | Manta Green, Front Cross Member Includes 420 to 420a | 1 |
| 16 | 390402200 | Pop Rivet 3/16" | 16 |
| 4 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip | 4 |
| 1 | 705208592 | Manta Green, Rear Cross Member Includes 430 to 430a | 1 |
| 14 | 390402200 | Pop Rivet 3/16" | 14 |
| 1 | 715006566 | Manta Green, LH Cage North America | 1 |
| 1 | 715006632 | Manta Green, LH Cage International | 1 |
| 6 | 390402200 | Pop Rivet 3/16" | 6 |
| 4 | 233121466 | Hex Flange Nut m12 | 4 |
| 1 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip Factory Cage:3, Service Cage:4 | 1 |
| 2 | 250000857 | Flange Screw M12 X 60 | 2 |
| 1 | 715006568 | Manta Green, RH Cage North America | 1 |
| 1 | 715006639 | Manta Green, RH Cage International | 1 |
