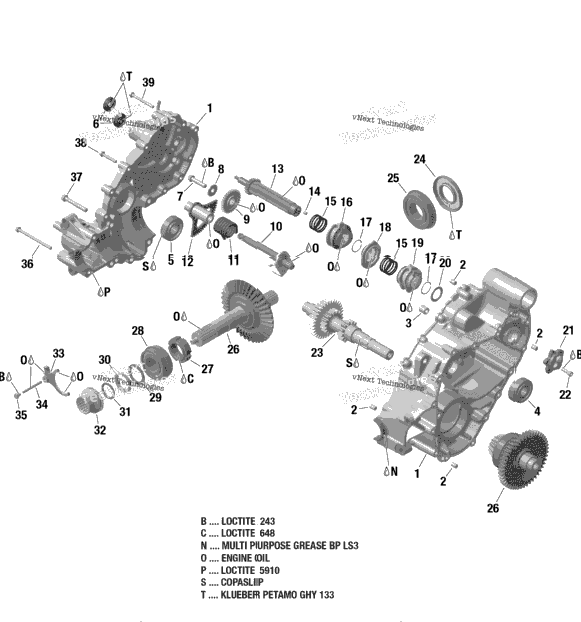

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Gear Housing Order Gearbox Ass'y | ||
| 4 | 420632010 | Center Pin 8 X 12 | 4 |
| XXXX | Not Available As Spare Part - Dowel | ||
| 2 | 420932816 | Ball Bearing | 2 |
| 1 | 420932432 | Ball Bearing | 1 |
| 1 | 420250452 | Oil Seal | 1 |
| 1 | 420440861 | Torx Flange Screw M8 X 35 | 1 |
| 1 | 420227937 | Plain Washer | 1 |
| 1 | 420620922 | Shift Shaft Ass'y | 1 |
| XXXX | Not Available As Spare Part - Intermediate Gear 30T | ||
| XXXX | Not Available As Spare Part - Shift Shaft | ||
| XXXX | Not Available As Spare Part - Spring | ||
| XXXX | Not Available As Spare Part - Tooth Segment Ass'y | ||
| 1 | 420657225 | Shifting Drum Ass'y | 1 |
| XXXX | Not Available As Spare Part - Needle Pin | ||
| XXXX | Not Available As Spare Part - Compression Spring | ||
| XXXX | Not Available As Spare Part - Gear shifting Gate | ||
| XXXX | Not Available As Spare Part - Snap Ring | ||
| XXXX | Not Available As Spare Part - Disengage Gate | ||
| XXXX | Not Available As Spare Part - Gear Shifting Gate | ||
| XXXX | Not Available As Spare Part - Thrust Washer | ||
| XXXX | Not Available As Spare Part - Indexwasher | ||
| 1 | 420241939 | Allen Screw M6 X 20 | 1 |
| 1 | 420637705 | Countershaft | 1 |
| 1 | 420831955 | Oil Seal | 1 |
| XXXX | Not Available As Spare Part - Ball Bearing Order Gearbox Ass'y | ||
| XXXX | Not Available As Spare Part - Bevel Gear Set Order Gearbox Ass'y | ||
| XXXX | Not Available As Spare Part - Groove Nut Order Gearbox Ass'y | ||
| XXXX | Not Available As Spare Part - Shim Set Order Gearbox Ass'y | ||
| XXXX | Not Available As Spare Part - Angular Ring Order Gearbox Ass'y | ||
| XXXX | Not Available As Spare Part - Ring Half Order Gearbox Ass'y | ||
| 1 | 420257673 | Shifting Sleeve | 1 |
| 1 | 420257606 | Shifting Fork | 1 |
| 1 | 420832650 | Needle Pin | 1 |
| 1 | 420841580 | Hex. Screw M6 X 8 | 1 |
| 2 | 420641228 | Torx Flange Screw M6 X 85 | 2 |
| 5 | 420641213 | Torx Flange Screw M8 X 55 | 5 |
| 8 | 420440274 | Torx Flange Screw M6 X 35 | 8 |
| 2 | 420440702 | Torx Flange Screw M6 X 55 | 2 |
