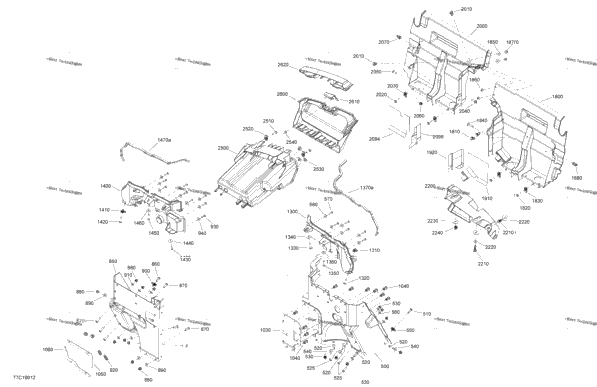

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 707900181 | LH Front Floor | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 4 | 250000712 | Torx Screw M6 X 20 | 4 |
| 3 | 250000758 | Torx Screw M6 X 25 | 3 |
| 7 | 233261494 | Hex. Elastic Flange Nut M6 | 7 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 3 | 234062670 | Stainless Steel Flat Washer | 3 |
| 6 | 250000720 | Torx Screw K50 X 16 | 6 |
| 6 | 234062410 | Flat Washer 6 mm | 6 |
| 1 | 707900004 | RH Front Floor | 1 |
| 5 | 250000712 | Torx Screw M6 X 20 | 5 |
| 9 | 233261494 | Hex. Elastic Flange Nut M6 | 9 |
| 6 | 234062670 | Stainless Steel Flat Washer | 6 |
| 4 | 705003668 | Oblong Grommet | 4 |
| 9 | 250000720 | Torx Screw K50 X 16 | 9 |
| 9 | 234062410 | Flat Washer 6 mm | 9 |
| 1 | 707900108 | Deflector Package STD | 1 |
| 1 | 707900192 | Deflector Except Package STD | 1 |
| 11 | 293150230 | Tuflok Plastic Rivet | 11 |
| 1 | 293250252 | Upper Seal | 1 |
| 1 | 293250253 | Bottom Seal | 1 |
| 1 | 707900029 | SUPPORT_PANEL LH | 1 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 1 | 224060201 | Flat Washer | 1 |
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 1 | 224061201 | Flat Washer | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 707900030 | SUPPORT_PANEL RH | 1 |
| 1 | 707900164 | LH Rear Deflector | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 2 | 250200040 | Flat Washer | 2 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900166 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 1 | 250000755 | Torx Screw M6 X 16 | 1 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 | 1 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 715001250 | Dashboard Ass'y | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 705003841 | Support Plate | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 1 | 707900009 | Storage Bin Packages DPS & STD | 1 |
| 1 | 707900046 | Storage Bin Packages XT, LTD & Hunting Edition | 1 |
| 3 | 414859400 | CAP | 3 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 707900221 | Luggage Cover Kit | 1 |
| 1 | 707900031 | Latch | 1 |
| 1 | 707900062 | Trim Glove Box | 1 |
| 6 | 250000742 | Torx Screw M5 X 14 Not Shown | 6 |
| 2 | 250200040 | Flat Washer Not Shown | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 Not Shown | 2 |
