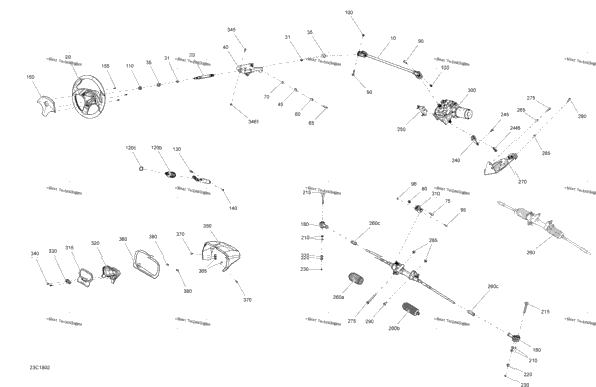

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709401687 | Steering Shaft Ass'y | 1 |
| 1 | 709400650 | Steering Wheel Packages DPS | 1 |
| 1 | 715001134 | Steering Wheel Kit Packages LTD, XT, Hunting Edition | 1 |
| 1 | 715500341 | Cap Packages LTD, XT, Hunting Edition | 1 |
| 1 | 709401167 | Steering Shaft | 1 |
| 2 | 293300144 | O-Ring | 2 |
| 2 | 415108000 | Cushion | 2 |
| 1 | 709401391 | Painted Steering Wheel Support | 1 |
| 2 | 705600799 | Bushing | 2 |
| 2 | 293900106 | Bushing | 2 |
| 2 | 207683044 | Hex. Flange Screw M8 X 30 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 250001020 | Hex. Screw M10 X 35 | 2 |
| 2 | 232500416 | Elastic Stop Nut M10 | 2 |
| 2 | 250001021 | Hex. Flange Screw M8 X 35 | 2 |
| 1 | 207063044 | Hex. Screw M6 X 30 | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 2 | 233281416 | Hex. Elastic Flange Nut M8 | 2 |
| 1 | 233221414 | Hex. Flange Elastic Nut M12 | 1 |
| 1 | 709400656 | Adjustment Cylinder Includes 120 to 120b | 1 |
| 1 | 709401232 | Boot Tube Side | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 250000669 | Socket Head Screw M8 X 16 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 709400780 | Steering Center Packages DPS | 1 |
| 3 | 250000723 | Phillips Screw K40 X 16 Packages DPS | 3 |
| 2 | 709401134 | Ball Joint | 2 |
| 4 | 250200086 | Flat Washer | 4 |
| 2 | 250001029 | Hexagonal Screw M12 X 88 | 2 |
| 2 | 232521416 | Elastic Stop Nut M12 | 2 |
| 2 | 211400017 | Cotter Pin | 2 |
| 1 | 709402178 | RH Power Steering Support | 1 |
| 4 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 4 |
| 1 | 709401869 | Left DPS Support | 1 |
| 1 | 709401500 | Rack And Pinion Steering Includes 260 to 260c | 1 |
| 1 | 715900235 | Boot Kit, Pinion Side | 1 |
| 1 | 715900236 | Boot Kit, Tube Side | 1 |
| 1 | 715900237 | Nut Tie Rod End | 1 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 709402176 | Power Steering Support Ass'y | 1 |
| 2 | 230600046 | SCREW-HEX.FLANGE DIN.6921 | 2 |
| 3 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 207602546 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 709402310 | Power Steering | 1 |
| 1 | 709401719 | Coupling | 1 |
| 1 | 709400760 | Cluster Support Packages DPS | 1 |
| 1 | 709400514 | Speedometer Cover Packages DPS | 1 |
| 1 | 709400573 | Latch Indicator Cover Packages DPS | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 Packages DPS | 2 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 707900124 | Upper Cluster Cover Except Packages DPS | 1 |
| 1 | 707900013 | Cluster Support Except Packages DPS | 1 |
| 2 | 250000957 | Extruded Panel Nut M6 Except Packages DPS | 2 |
| 2 | 250000721 | Torx Truss Screw M6 X 16 Except Packages DPS | 2 |
| 1 | 219704372 | Was 293250087 Gasket Except Packages DPS | 1 |
