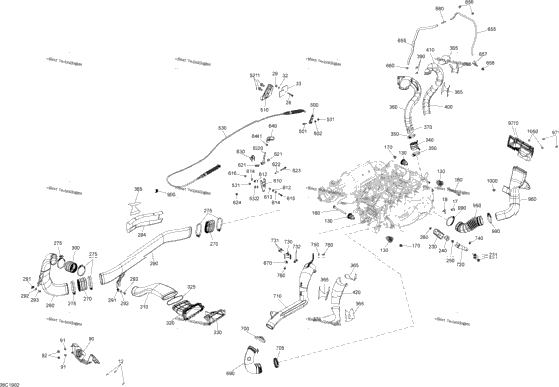

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3 | 250000720 | Torx Screw K50 X 16 | 3 |
| 1 | 707001185 | Plug | 1 |
| 1 | 707800506 | Retainer Clip | 1 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 710000073 | Insulator Pad | 1 |
| 1 | 707001166 | Accelerator Pedal | 1 |
| 2 | 707000848 | Bushing | 2 |
| 2 | 233081416 | Hex. Flange Nut M8 | 2 |
| 4 | 707001170 | Anti Vibration Buffer | 4 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 707000707 | Upper Engine Bracket | 1 |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 | 2 |
| 1 | 707000949 | Rubber Isolator | 1 |
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip | 1 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 1 | 707001467 | Flexible Adaptor COM-MAX | 1 |
| 2 | 293650091 | Norma Clamp COM-MAX | 2 |
| 1 | 707001339 | Air Inlet COM-MAX | 1 |
| 1 | 707001228 | Air Inlet COM-MAX | 1 |
| 1 | 250000957 | Extruded Panel Nut M6 COM-MAX | 1 |
| 1 | 250200082 | Flat Washer COM-MAX | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 COM-MAX | 1 |
| 1 | 707001346 | Reflector COM-MAX | 1 |
| 1 | 707001467 | Flexible Adaptor | 1 |
| 1 | 707000909 | Primary Air Intake | 1 |
| 1 | 707000908 | Adaptor | 1 |
| 1 | 707001344 | CVT Filter | 1 |
| 1 | 707001274 | Adaptor | 1 |
| 2 | 293650118 | Norma Gear Clamp | 2 |
| 1 | 707001243 | CVT Outlet M-1R | 1 |
| 8 | 707000991 | Reflective Sheet COM-MAX | 8 |
| 1 | 707000988 | Reflector | 1 |
| 2 | 250000725 | Screw M4 X 16 | 2 |
| 1 | 707001284 | Reflector COM-MAX | 1 |
| 1 | 707001360 | Reflector COM-MAX | 1 |
| 1 | 707001286 | Reflector COM-MAX | 1 |
| 1 | 707000911 | Lever | 1 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 707000919 | Cable Support M-1R | 1 |
| 1 | 707001283 | Shifting Cable COM-MAX | 1 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 1 | 707000828 | Lower Lever Arm | 1 |
| 2 | 707000847 | Flanged Bushing | 2 |
| 1 | 707000801 | Bushing | 1 |
| 2 | 234062410 | Flat Washer 6 mm | 2 |
| 1 | 207663044 | Hex. Flange Screw M6 X 30 | 1 |
| 1 | 707000711 | Upper Lever Arm | 1 |
| 2 | 707000869 | Flanged Bushing | 2 |
| 1 | 707001376 | Bushing | 1 |
| 1 | 707000750 | Lever Arm Spring | 1 |
| 1 | 707000284 | Lever Handle | 1 |
| 1 | 232180491 | Hex. Jam Nut M8 | 1 |
| 1 | 219704389 | Polyurethane Hose 4000MM Long | 1 |
| 2 | 414227300 | Clip | 2 |
| 1 | 293710059 | Y-Fitting | 1 |
| 1 | 293720029 | Grommet | 1 |
| 1 | 414415200 | Spring Clamp | 1 |
| 1 | 518321570 | Open Clamp | 1 |
| 1 | 293710039 | Straight Fitting | 1 |
| 1 | 707001229 | Front Adaptor COM-MAX | 1 |
| 1 | 293650118 | Norma Gear Clamp COM-MAX | 1 |
| 1 | 293650091 | Norma Clamp COM-MAX | 1 |
| 1 | 707001230 | CVT Outlet COM-MAX | 1 |
| 1 | 707001231 | Front Support COM-MAX | 1 |
| 1 | 707001232 | Rear Support COM-MAX | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 COM-MAX | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 COM-MAX | 2 |
| 1 | 293150230 | Tuflok Plastic Rivet COM-MAX | 1 |
| 1 | 234062410 | Flat Washer 6 mm COM-MAX | 1 |
| 2 | 210261650 | Hex. Flange Screw M6 X 16 COM-MAX | 2 |
| 1 | 707001400 | Flexible Adaptor M-1R | 1 |
| 1 | 707001401 | Air Inlet COM-MAX&M-1R | 1 |
| 1 | 707001422 | Filter M-1R | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 M-1R | 2 |
| 2 | 293650091 | Norma Clamp M-1R | 2 |
| 1 | 293150230 | Tuflok Plastic Rivet COM-MAX&M-1R | 1 |
| 2 | 250200025 | Washer M5 M-1R | 2 |
