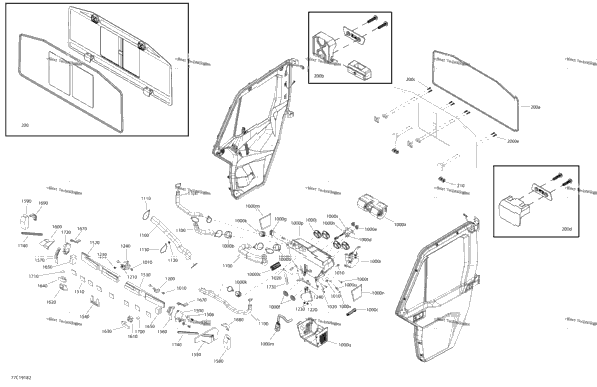

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715002440 | Rear Window kit Includes 200 to 200e | 1 |
| 1 | 219704384 | Était Was 293250393 Extrusion | 1 |
| 2 | 705800088 | Upper Clamp Ass'y Includes 200b to 200c | 2 |
| 2 | 250000709 | Torx Screw M6.81 X 30 | 2 |
| 2 | 705800090 | Lower Clamp Ass'y Includes 200d to 200e | 2 |
| 2 | 705800317 | Stopper Rubber | 2 |
| 1 | 520001536 | Fan | 1 |
| 2 | 520001672 | Duct Adaptor | 2 |
| 2 | 520001673 | Rectangular Grid | 2 |
| 1 | 520001674 | Fan Switch | 1 |
| 2 | 520001675 | Button | 2 |
| 3 | 520001676 | Grommet 5/8'' | 3 |
| 520001679 | FUSE BOX | ||
| 1 | 520001680 | Potentiometer | 1 |
| 4 | 520001681 | Round Grid | 4 |
| 2 | 520001682 | Duct Adaptor | 2 |
| 1 | 520001683 | Wiring Harness | 1 |
| 2 | 520001537 | Filter | 2 |
| 1 | 520001546 | Console | 1 |
| 1 | 520001626 | Lower Cover | 1 |
| 1 | 520001685 | Valve Ass'y 5/8'' | 1 |
| 1 | 520001686 | HVAC Decal | 1 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 1 | 275500398 | Check Valve | 1 |
| 2 | 293650047 | Crimp Clamp, 15.3-706R | 2 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 3 | 250000722 | Torx Screw M6 X 20 | 3 |
| 1 | 520001643 | Air Duct Kit Includes 1100 to 1100b | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750062 | Tie Rap Clip | 1 |
| 1 | 520001619 | LH Support | 1 |
| 1 | 520001621 | RH Support | 1 |
| 1 | 520001623 | Central Support | 1 |
| 3 | 250100199 | Insert Half Hex Body M6 x 1.0 | 3 |
| 3 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 3 |
| 1 | 705800260 | Insulating Foam | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 2 | 292001663 | Flat Washer 8 mm, Nylon | 2 |
| 8 | 705800261 | Insulating Foam | 8 |
| 1 | 705800262 | Insulating Foam | 1 |
| 1 | 705800263 | Insulating Foam | 1 |
| 1 | 705800264 | Insulating Foam | 1 |
| 1 | 705800265 | Insulating Foam | 1 |
| 1 | 705800266 | LH Insulating Foam | 1 |
| 1 | 705800267 | RH Insulating Foam | 1 |
| 1 | 705800268 | Insulating Foam | 1 |
| 1 | 705800269 | Insulating Foam | 1 |
| 1 | 705800270 | Insulating Foam | 1 |
| 1 | 705800271 | LH Insulating Foam | 1 |
| 1 | 705800272 | RH Insulating Foam | 1 |
| 1 | 705800273 | Insulating Foam | 1 |
| 1 | 705800274 | Insulating Foam | 1 |
| 2 | 705800275 | Insulating Foam | 2 |
| 2 | 705800277 | Insulating Foam | 2 |
| 1 | 705800278 | LH Insulating Foam | 1 |
| 1 | 705800279 | RH Insulating Foam | 1 |
| 1 | 705800280 | LH Insulating Foam | 1 |
| 1 | 705800281 | RH Insulating Foam | 1 |
| 1 | 705800282 | Insulating Foam | 1 |
| 1 | 704906818 | Protector Decal | 1 |
| 1 | 219704379 | Was 293250361 Gasket | 1 |
| 3 | 232081414 | Hex. Nut M8 Not Shown | 3 |
| 3 | 250000874 | Torx Truss M8 X 25 Not Shown | 3 |
| 3 | 234082410 | Flat Washer 8 mm Not Shown | 3 |
