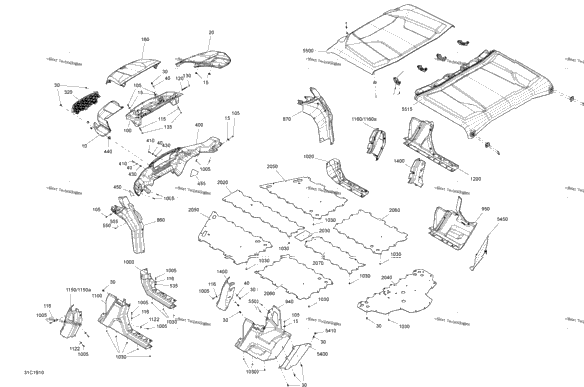

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705012828 | Timeless Black, Front LH Fender | 1 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 1 | 705012829 | Timeless Black, Front RH Fender | 1 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 4 | 503192494 | Washer | 4 |
| 1 | 705011391 | Service Center | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 2 | 210263050 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 4 | 207667554 | Hex. Flange Screw M6 X 75 | 4 |
| 4 | 732610072 | Push Nut | 4 |
| 2 | 293900125 | Bushing | 2 |
| 1 | 705012830 | Timeless Black, Removable Hood | 1 |
| 1 | 705009364 | Grid Front Fascia | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 705011392 | Front Facia | 1 |
| 2 | 250000886 | Torx Screw M8 X 30 | 2 |
| 2 | 503192494 | Washer | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 705010718 | Grommet | 2 |
| 1 | 704905072 | LH Front Reflector | 1 |
| 1 | 704905073 | RH Front Reflector | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 2 | 234051670 | Flat Washer M5 | 2 |
| 1 | 705008152 | LH Front Lateral Panel | 1 |
| 1 | 705008153 | RH Front Lateral Panel | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 1 | 705012704 | Rear LH Side Panel | 1 |
| 4 | 414916600 | Black, Nylon Cap Except Package Lone Star Edition | 4 |
| 5 | 293150230 | Tuflok Plastic Rivet | 5 |
| 1 | 705012705 | RH Rear Side Panel | 1 |
| 1 | 705008699 | LH Central Lateral Panel | 1 |
| 3 | 250000807 | Torx Truss Screw M6 X 25 | 3 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer Package CAB | 2 |
| 1 | 705008700 | RH Central Lateral Panel | 1 |
| 6 | 293150108 | Pop Rivet 3/16” | 6 |
| 16 | 293150108 | Pop Rivet 3/16” Except Package Lone Star Edition | 16 |
| 1 | 705013112 | LH Middle Side Panel | 1 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 | 2 |
| 2 | 250200162 | Flat Washer M6.6 X 22 | 2 |
| 1 | 705011955 | LH Middle Cage Cover Package CAB | 1 |
| 1 | 705010601 | LH Middle Cage Cover | 1 |
| 3 | 250200162 | Flat Washer M6.6 X 22 | 3 |
| 1 | 705011957 | RH Middle Cage Cover Package CAB | 1 |
| 1 | 705010602 | RH Middle Cage Cover | 1 |
| 2 | 250100199 | Insert Half Hex Body M6 x 1.0 | 2 |
| 1 | 705013113 | RH Middle Side Panel | 1 |
| 1 | 715003564 | LH Rear Cage Cover Kit | 1 |
| 1 | 715003565 | RH Rear Cage Cover Kit | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 705009151 | Central Skid Plate | 1 |
| 17 | 293150104 | Pop Rivet 3/16" | 17 |
| 1 | 705010884 | Connection Plate | 1 |
| 1 | 705011292 | Rear Skid Plate | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 2 | 705010422 | Lateral Skid Plate Except Packages BASE & DPS | 2 |
| 1 | 293150104 | Pop Rivet 3/16" Except Packages BASE & DPS | 1 |
| 2 | 705010587 | Rear Side Skid Plate Except Packages BASE & DPS | 2 |
| 1 | 705010588 | Rear Central Skid Plate | 1 |
| 16 | 293150104 | Pop Rivet 3/16" | 16 |
| 1 | 705010426 | LH Rear Deflector | 1 |
| 1 | 292001663 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 705010427 | RH Rear Deflector | 1 |
| 1 | 705800066 | Front Roof Packages CAB, Lone Star Edition & XT | 1 |
| 1 | 705800067 | Rear Roof Packages CAB, Lone Star Edition & XT | 1 |
| 1 | 219704384 | Était Was 293250393 Extrusion Packages CAB, Lone Star Edition & XT | 1 |
| 3 | 232081414 | Hex. Nut M8 Not Shown | 3 |
| 3 | 234082410 | Flat Washer 8 mm Not Shown | 3 |
| 3 | 250000874 | Torx Truss M8 X 25 Not Shown | 3 |
| 14 | 250000760 | Torx Screw Truss Head K50X20 T20 Not Shown | 14 |
| 6 | 250200162 | Flat Washer M6.6 X 22 Not Shown | 6 |
| 4 | 250000874 | Torx Truss M8 X 25 Not Shown | 4 |
| 4 | 705800131 | Roof Anchor Not Shown | 4 |
| 2 | 705800058 | Roof Cap Not Shown | 2 |
| 2 | 250000807 | Torx Truss Screw M6 X 25 Not Shown | 2 |
| 1 | 250000807 | Torx Truss Screw M6 X 25 Not Shown | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer Not Shown | 1 |
