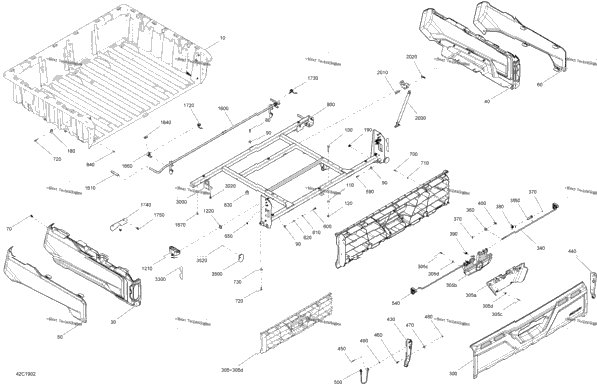

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8 | 250000807 | Torx Truss Screw M6 X 25 | 8 |
| 0 | 715005049 | Inside Cargo Box Kit | 0 |
| 1 | 708302578 | LH Panel | 1 |
| 1 | 708302579 | RH Panel | 1 |
| 1 | 708301929 | Camo, LH Fascia Cargo Box Packages XT & CAB - Camo | 1 |
| 1 | 708302289 | Intense Red, LH Box Trim Packages XT & CAB - Intense Red | 1 |
| 1 | 708302641 | Timeless Black, LH Box Trim Timeless Black | 1 |
| 1 | 708302777 | Hyper Silver, LH Trim Cargo Box Packages XT & CAB - Hyper Silver | 1 |
| 1 | 708301930 | Camo, RH Fascia Cargo Box Packages XT & CAB - Camo | 1 |
| 1 | 708302290 | Intense Red, RH Box Trim Packages XT & CAB - Intense Red | 1 |
| 1 | 708302640 | Carbon Black, RH Trim Box Timeless Black | 1 |
| 1 | 708302778 | Hyper Silver, RH Trim Cargo Box Packages XT & CAB - Hyper Silver | 1 |
| 4 | 293150230 | Tuflok Plastic Rivet Except Packages BASE & DPS | 4 |
| 7 | 250000728 | Torx Screw M6 X 25 | 7 |
| 13 | 250200162 | Flat Washer M6.6 X 22 | 13 |
| 4 | 207786044 | Carriage Bolt M8 X 60 | 4 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 6 | 250100177 | Panel nut M6 | 6 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 1 | 708302584 | Deflector | 1 |
| 6 | 293150108 | Pop Rivet 3/16” | 6 |
| 6 | 517124300 | Washer | 6 |
| 1 | 708301227 | Outside Tailgate | 1 |
| 1 | 708302914 | Panel Cargo Box Ass'y Includes 305 to 305d | 1 |
| 1 | 708302913 | Handle Support | 1 |
| 1 | 708302911 | Handle | 1 |
| 6 | 250000760 | Torx Screw Truss Head K50X20 T20 | 6 |
| 6 | 250200025 | Washer M5 | 6 |
| 2 | 708301500 | Handle Rod | 2 |
| 2 | 708301634 | Pivot bushing | 2 |
| 2 | 708301653 | Washer | 2 |
| 4 | 269800431 | Hairpin Cotter | 4 |
| 2 | 705009468 | Spring | 2 |
| 1 | 705009470 | Spring | 1 |
| 1 | 705009471 | Spring | 1 |
| 1 | 708301647 | LH Tailgate Support | 1 |
| 1 | 708301649 | RH Tailgate Support | 1 |
| 2 | 207663554 | Hex. Flange Screw M6 X 35 | 2 |
| 4 | 207662554 | Hex. Flange Screw M6 X 25 | 4 |
| 8 | 250200162 | Flat Washer M6.6 X 22 | 8 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 6 |
| 2 | 708300737 | Bushing | 2 |
| 2 | 708301491 | Cable | 2 |
| 2 | 708301501 | Lock | 2 |
| 6 | 207663554 | Hex. Flange Screw M6 X 35 | 6 |
| 2 | 224061121 | Flat Washer | 2 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 10 |
| 15 | 250000760 | Torx Screw Truss Head K50X20 T20 | 15 |
| 11 | 250200025 | Washer M5 | 11 |
| 12 | 250200162 | Flat Washer M6.6 X 22 | 12 |
| 1 | 708302740 | Cargo Box Frame | 1 |
| 4 | 708001827 | Rubber Stopper | 4 |
| 4 | 293830005 | Rubber Bumper | 4 |
| 2 | 708301576 | Pivot Bracket | 2 |
| 2 | 293300131 | O-Ring | 2 |
| 1 | 708302296 | Latch Ass'y | 1 |
| 2 | 708300358 | Cap Latch Lever | 2 |
| 6 | 705500033 | Half Ring | 6 |
| 3 | 708301479 | Clamp Retainer | 3 |
| 3 | 210261640 | Hex. Flange Screw M6 X 16 | 3 |
| 1 | 708301983 | Spring | 1 |
| 1 | 708301984 | Spring | 1 |
| 2 | 708302267 | Deflector | 2 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 1 | 708301461 | Shock | 1 |
| 2 | 250400075 | Clevis Pin | 2 |
| 2 | 414575600 | Hair Pin | 2 |
| 4 | 708301480 | Retaining Plate | 4 |
| 8 | 207662054 | Hex. Flange Screw M6 X 20 | 8 |
| 2 | 704905074 | Reflector | 2 |
| 2 | 705011221 | Red Reflector | 2 |
| 2 | 232551414 | Elastic Stop Nut M5 | 2 |
