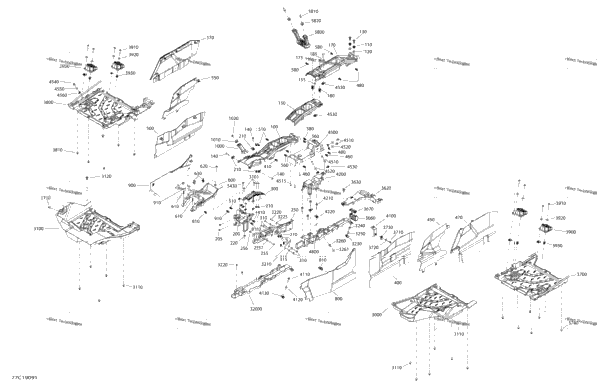

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715004068 | Front Console Kit | 1 |
| 2 | 707900133 | Insert | 2 |
| 2 | 503189273 | Washer | 2 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 3 | 250000722 | Torx Screw M6 X 20 | 3 |
| 1 | 707900492 | Middle Console | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 707900568 | Rear Console | 1 |
| 2 | 705010872 | Insert | 2 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 707900459 | Front Central Console Support | 1 |
| 2 | 250000720 | Torx Screw K50 X 16 | 2 |
| 12 | 250000957 | Extruded Panel Nut M6 | 12 |
| 1 | 707900488 | Shifter Gate Support | 1 |
| 1 | 250000748 | Torx Screw M6 X 45 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 707900644 | Lever Indicator | 1 |
| 7 | 250000722 | Torx Screw M6 X 20 | 7 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 707900396 | LH Lateral Dash Panel | 1 |
| 3 | 705010721 | Clip | 3 |
| 1 | 707900497 | LH Middle Lateral Dash Panel | 1 |
| 2 | 705010721 | Clip | 2 |
| 1 | 707900571 | LH Rear Lateral Dash Panel | 1 |
| 1 | 707900397 | RH Lateral Dash Panel | 1 |
| 1 | 707900498 | RH Middle Lateral Dash Panel | 1 |
| 1 | 707900572 | RH Rear Lateral Dash Panel | 1 |
| 1 | 707900460 | Front Top Console | 1 |
| 2 | 250000760 | Torx Screw Truss Head K50X20 T20 | 2 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 1 | 707900398 | LH Lateral Console Panel | 1 |
| 1 | 707900399 | RH Lateral Console Panel | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 1 | 707900339 | LH Front Floor | 1 |
| 1 | 707900340 | RH Front Floor | 1 |
| 13 | 293150104 | Pop Rivet 3/16" | 13 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 707900710 | Central Support Hose | 1 |
| 1 | 707900478 | Cable Support | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 2 | 250200025 | Washer M5 | 2 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 1 | 707900651 | Hose Support | 1 |
| 1 | 707900699 | Support Hose Rear | 1 |
| 1 | 707900729 | Support Hose Rear | 1 |
| 1 | 707900495 | LH Floor | 1 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 1 | 707900496 | Rear Right Floor | 1 |
| 4 | 707900595 | Footrest Support | 4 |
| 8 | 250000807 | Torx Truss Screw M6 X 25 | 8 |
| 8 | 234062670 | Stainless Steel Flat Washer | 8 |
| 8 | 250000957 | Extruded Panel Nut M6 | 8 |
| 1 | 707900501 | Central Console Support | 1 |
| 1 | 250000807 | Torx Truss Screw M6 X 25 | 1 |
| 1 | 707900569 | Rear Console Support | 1 |
| 4 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 | 4 |
| 1 | 707900573 | Console Support | 1 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 3 | 250000720 | Torx Screw K50 X 16 | 3 |
| 4 | 234062670 | Stainless Steel Flat Washer | 4 |
| 6 | 250000957 | Extruded Panel Nut M6 | 6 |
| 1 | 707900711 | Support Hose Central | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 1 | 707900575 | Passenger Handle | 1 |
| 2 | 707900048 | Connector Tube | 2 |
