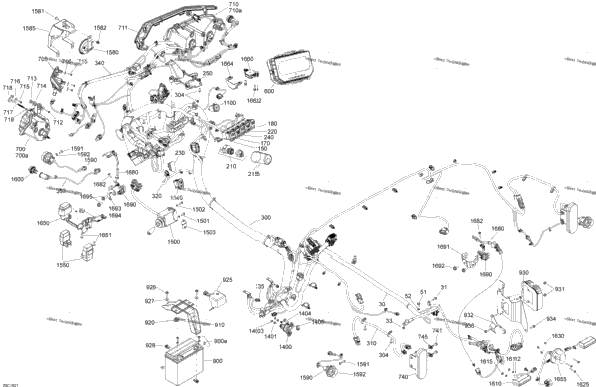

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710006233 | Starter Wiring Harness | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 710005489 | Switch 2X4 | 1 |
| 1 | 710005470 | Differential Lock Switch | 1 |
| 1 | 710004198 | Ignition Switch With Keys | 1 |
| 1 | 710005739 | Key Switch Protector | 1 |
| 1 | 710005909 | Driving Mode Switch | 1 |
| 3 | 710001999 | Plug Carling | 3 |
| 1 | 710006183 | Cluster Navigator Switch | 1 |
| 1 | 710005672 | Housing Support | 1 |
| 1 | 710006237 | Main Wiring Harness Long | 1 |
| 21 | 250000959 | Screw PT Type K-50 X 16 | 21 |
| 2 | 710006551 | Rear Harness | 2 |
| 1 | 710005929 | Trottle Pedal Harness | 1 |
| 1 | 710006218 | Front Wiring Harness | 1 |
| 2 | 710005676 | Position Light Harness | 2 |
| 1 | 710005263 | Speedometer | 1 |
| 1 | 710006422 | LH Headlamp Includes 700 to 700a | 1 |
| 1 | 715900141 | Bulb 12V 55W | 1 |
| 1 | 710004994 | LH Signature Beam | 1 |
| 1 | 710006423 | RH Headlamp Includes 710 to 710a | 1 |
| 1 | 710004995 | RH Signature Beam | 1 |
| 2 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 | 2 |
| 4 | 710004749 | Shoulder Bushing | 4 |
| 2 | 293720053 | Grommet | 2 |
| 10 | 250000720 | Torx Screw K50 X 16 | 10 |
| 10 | 234062670 | Stainless Steel Flat Washer | 10 |
| 4 | 710005837 | Ajustment Screw | 4 |
| 4 | 710005097 | Adjustment Guide | 4 |
| 4 | 293300192 | O-Ring | 4 |
| 2 | 710004257 | Tail Light | 2 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 4 |
| 4 | 250000957 | Extruded Panel Nut M6 | 4 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Includes 900 to 900a | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 1 | 710005673 | Fixation Plate | 1 |
| 1 | 705003666 | Rubber Grommet | 1 |
| 1 | 710005930 | Battery Cable Cap | 1 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 250100198 | Panel Nut M6 X 1.0 | 2 |
| 1 | 710005842 | Voltage Regulator | 1 |
| 1 | 710006402 | Voltage Regulator Attach | 1 |
| 1 | 710006656 | Voltage Regulator Support | 1 |
| 3 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 3 |
| 1 | 710005374 | 12V Power Outlet | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 1 | 250100198 | Panel Nut M6 X 1.0 | 1 |
| 1 | 710001721 | Turn Signal | 1 |
| 2 | 210251650 | Hex. Forming Screw M5 X 16 | 2 |
| 2 | 234151401 | Lock Washer 5 mm | 2 |
| 1 | 704902614 | Flasher Decal | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 710006107 | Hazard Lights Switch | 1 |
| 2 | 710003239 | Flasher Unit | 2 |
| 1 | 710004791 | Horn | 1 |
| 1 | 250000721 | Torx Truss Screw M6 X 16 | 1 |
| 1 | 233261494 | Hex. Elastic Flange Nut M6 | 1 |
| 1 | 710006055 | Horn Bracket | 1 |
| 4 | 710002964 | Flasher | 4 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 4 | 234061410 | Flat Washer 6 mm | 4 |
| 1 | 710003168 | Dart Tie Rap 200MM | 1 |
| 2 | 710001726 | Day Light Includes 1600 to 1600a | 2 |
| 1 | 710003269 | Cap Protector | 1 |
| 2 | 710002055 | License Light Includes 1610 to 1610a | 2 |
| 1 | 219800128 | Bulb | 1 |
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 4 | 232061600 | Hex. Nut M6 | 4 |
| 3 | 208653560 | Phillips Screw M5 X 35 | 3 |
| 3 | 233251414 | Hex. Flange Elastic Nut M5 | 3 |
| 1 | 710006056 | Support Connector | 1 |
| 4 | 250000959 | Screw PT Type K-50 X 16 | 4 |
| 3 | 250000959 | Screw PT Type K-50 X 16 | 3 |
| 1 | 710006245 | Trailer Wiring Harness | 1 |
| 1 | 710005658 | Yaw Rate Sensor | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 1 | 710006501 | Yaw Sensor Support | 1 |
| 4 | 710006981 | Speed Sensor | 4 |
| 2 | 278002910 | Clip (double dart) | 2 |
| 2 | 710001343 | Clip | 2 |
| 4 | 705402088 | Sensor Support | 4 |
| 2 | 710006452 | ABS Harness Support | 2 |
| 4 | 207582054 | Washer Head Hexa. Screw M8 X 20 | 4 |
| 1 | 710006554 | RH ABS Harness Support | 1 |
| 1 | 710006555 | LH ABS Harness Support | 1 |
